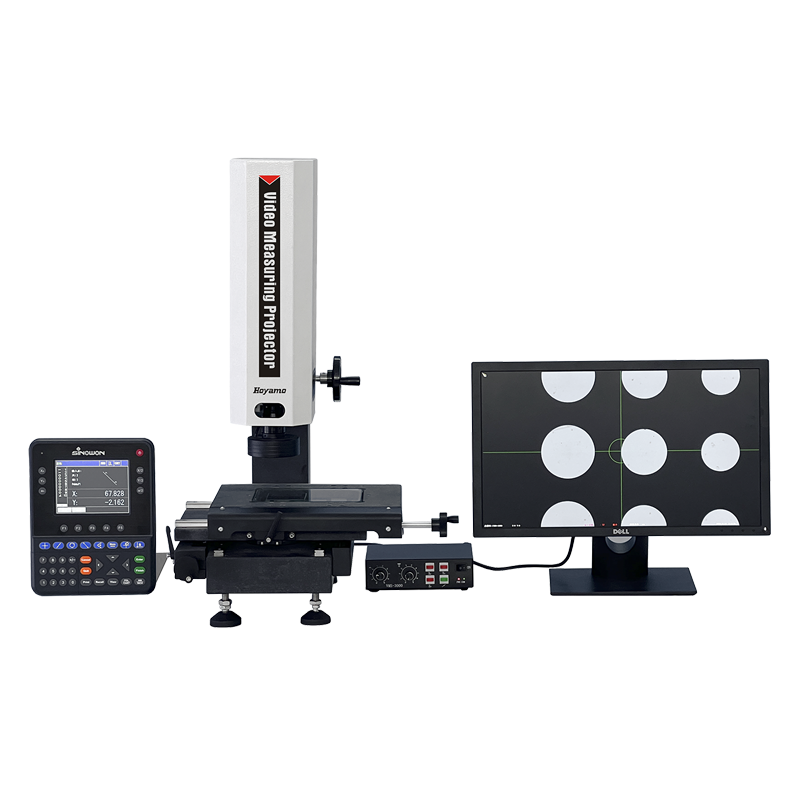

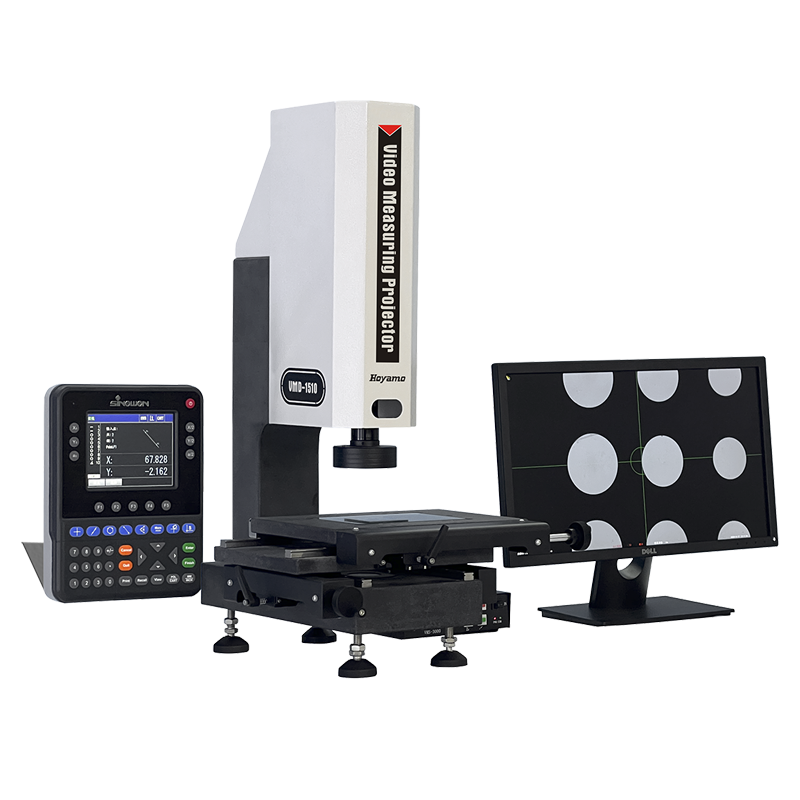

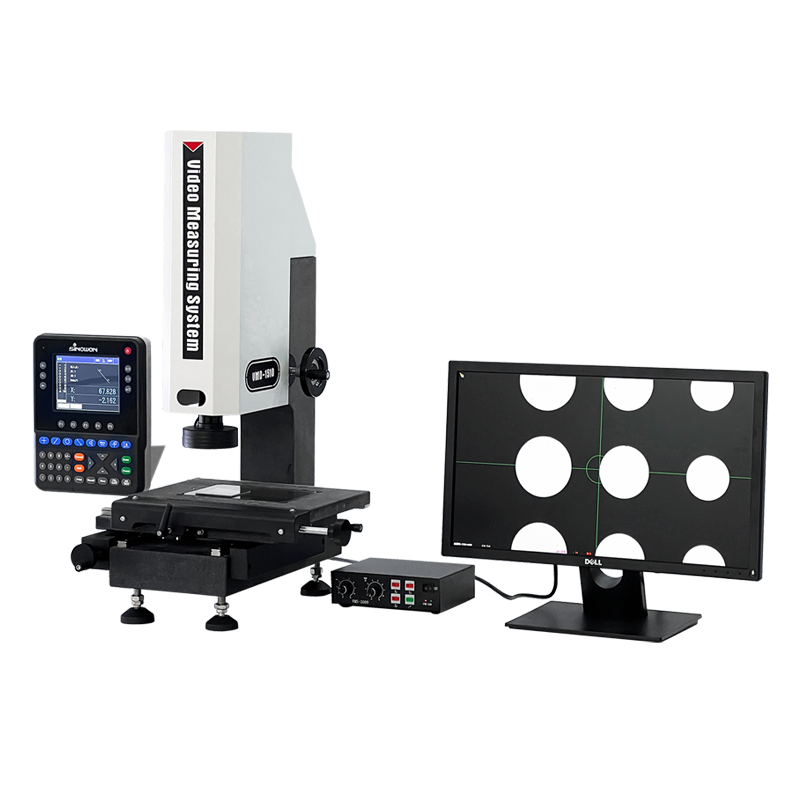

Video Measuring Projector VMD-3020
Product Characteristic:
l Adopts granite stone base and column to ensure the stability and precision of the machine;
l Adopts toothless polished rod and fast-moving locking device to ensure that the return error of the table is within 2um;
l Adopts high-precision instrument optical ruler and precision worktable to ensure E1 accuracy of the machine is within ≤3+L/200um;
l Adopts zoom lens and high-resolution color digital camera to ensure clear picture quality without distortion;
l Adopts LED cold surface light source and bottom LED parallel light source as projector illuminations;
l Adopts LED cold surface light source and bottom LED parallel light source as projector illuminations;
l Adopts to adjust the suitable color of Cross line to aim the measured points;
l Adopts high-quality color screen metrology multifunction digital readout DP400 as data process system.
Technical Specifications:
| Commodity | Video Measuring Projector VMD Series | ||||
| Model | VMD-1510 | VMD-2010 | VMD-3020 | VMD-4030 | |
| Granite Stage | (310*220) mm | (390*220)mm | (505*350)mm | (605*450)mm | |
| Glass Stage | (179.5*129.5) mm | (229.5*129.5)mm | (356*248)mm | (456*348)mm | |
| X/Y Axis Travel | (150*100) mm | (200*100)mm | (300*200)mm | (400*300)mm | |
| Z Axis Travel | 100mm | 100mm | 200mm | 200mm | |
| Linear Scales | Resolution: 0.5um | ||||
| Instrument Base and Column | High Precision Granite Stone | ||||
| Measurement Accuracy* | E1x,y | 3+L/200um | |||
| E1xy | 5+L/200um | ||||
| E1z | 5+L/200um | ||||
| Repeatability Accuracy | 2um | ||||
| Illumination System | LED cold surface light | ||||
| Bottom LED parallel light | |||||
| Optional coaxial light | |||||
| HDMI Camera | 1/3" 2MPixel High Resolution Camera: 1920*1080@30fps | ||||
| Video Magnification | 6.5X High-Resolution Zoom lens with Optical Magnification: 0.7X~4.5X, | ||||
| Video Magnification: 26X~172X (21.5' Monitor) | |||||
| Wireless Mouse | Applied to adjust the suitable color of Cross line to aim the measured points | ||||
| HDMI LCD Monitor | 21” HDMI LCD Monitor | ||||
| Measurement Data Process | Digital readout DP400 with Multilanguage English, Traditional Chinese, Optional Other Language Versions | ||||
| Power Supply | AC220V/50Hz; 110V/60Hz | ||||
| Dimension (WxDxH) | (462*401*725) mm | (477*452*725)mm | (744*643*1075)mm | (908*776*1070)mm | |
| Gross/Net Weight | 60/48Kg | 65/50Kg | 275/208Kg | 283Kg | |
Models and Specifications:
| Model | Code# | Model | Code# | Model | Code# |
| VMD-1510 | 525-020DP | VMD-2010 | 525-020EP | VMD-2515 | 525-020FP |
| VMD-3020 | 525-020GP | VMD-4030 | 525-020HP | VMD-5040 | 525-020JP |
The Measuring Space of VMD Series:
| Travel mm | Model | Code# | X Axis Travel mm | Y Axis Travel mm | Z Axis Standard Travelmm | Z-axis Maximum Customized Travel mm |
| 150x100x100 | VMD-1510 | 525-020DP | 150 | 100 | 100 | ------ |
| 200x100x100 | VMD-2010 | 525-020EP | 200 | 100 | 100 | 200 |
| 250x150x200 | VMD-2515 | 525-020FP | 250 | 150 | 200 | 300 |
| 300x200x200 | VMD-3020 | 525-020GP | 300 | 200 | 200 | 400 |
| 400x300x200 | VMD-4030 | 525-020HP | 400 | 300 | 200 | 400 |
| 500x400x200 | VMD-5040 | 525-020JP | 500 | 400 | 200 | 400 |
Multifunction Digital Readout of Video Measuring Projector DP400
Features:
Ø 5.6〃Color Screen and Sealed silicone touch button, with full information, friendly operation, long using life;
Ø Save 100 permanent image elements, can set and save current date;
Ø Multi-function Measurement: Point, line, circle, angle, distance, rectangular, screw thread, ellipse, slot, rounding, preset, construction, and so on;
Ø Obverse or Opposite direction counting function,1/2 value, midpoint, permission function, Call function, REC (record)function, and Cycle measurement;
Ø Section and linear compensation are available for 3-axis, highly ensure measurement accuracy;
Ø Can connect foot switch, printer, optical edge detection and other multiple auxiliary measurement tools;
Ø With polar and coordinate system, and can display millimeter and inch, and can shift easily;
Ø With independent password permission function, to prevent the possibility of data deviation by wrong operation, it can also change the original setting by password permission;
Ø Support multiple language: Chinese, English and other language.
Multifunction Digital Readout Specification:
| Commodity | Multifunction Digital Readout of Video Measuring Projector |
| Model | DP400 |
| Code# | 510-340 |
| Language | Chinese, Portuguese, German and English, etc. |
| LCD Screen Size | 115mm×85mm |
| LCD Screen Resolution | 640*480 |
| Digital Display Range | 8Digits (With Decimal Point) |
| Display Axis | 3-axis (X,Y,Z/Q) |
| Z/Q Display Model | Length or Angle |
| Angle Display Model | Degree, Minutes and Second or Degree |
| Signa of Linear Scales |
TTL square-wave or AC sine wave of two 90 ° phase angle difference, drive capacity larger than 10MA |
| Linear Scale Resolution | 0.1um,0.2um,0.5um, 1um,2um,5um |
| Baud Rate | 4800,9600,14400,19200,38400,57600 |
| Data Output Port | RS232,DB-9 Parent interface |
| Operation Keyboard | Sealed Silicone touch-type keyboard |
| Expansion port | Foot Switch, Printer, Optical Edge Finder, etc |
| Input Power Supply | AC90V-240V,15W |
